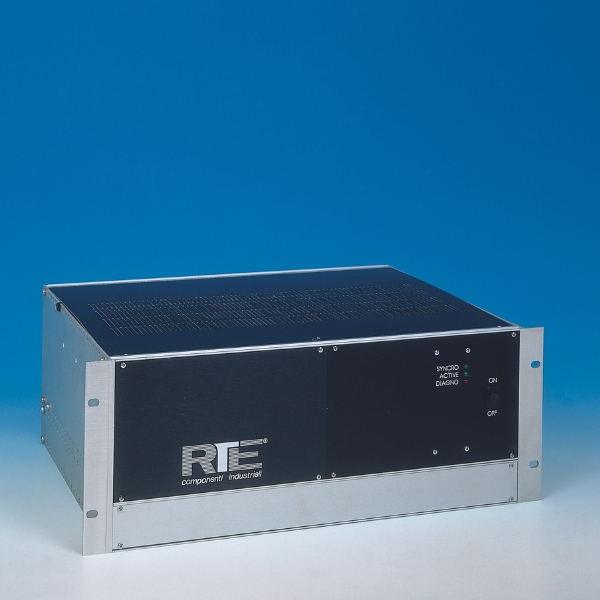

ISR 350 ÷1400W

SINE WAVE SWITCHING VOLTAGE INVERTER RUNNING from “ISR SERIES” RACK

The sine wave voltage inverters of the ISR series, designed to be used in advanced electrical systems, were designed in such a way as to ensure galvanic separation between the power supply circuit and the powered circuit. In addition, the use of ultra-sound switching makes this series extremely quiet.

download the technical specifications

ISR 350 ÷1400W (sine wave switching voltage inverter running from "ISR Series" rack)

  • Yield: 75% ÷ 85%.
  • Noise at 1 meter: 46 db.
  • Operating temperature: 0 ÷ 40°C.
  • Humidity: 0 ÷ 95%.
  • Total harmonic distortion with linear load: < 2%.
  • Output voltage variation as a function of load and input: < 2%.
  • Output peak current: > 2.5 for 3 sec.
  • Temporary overload allowed for 3 sec. 150%.
  • Voltage-free exchange alarm contact: SPTD.
  • Output for RS232: option.
